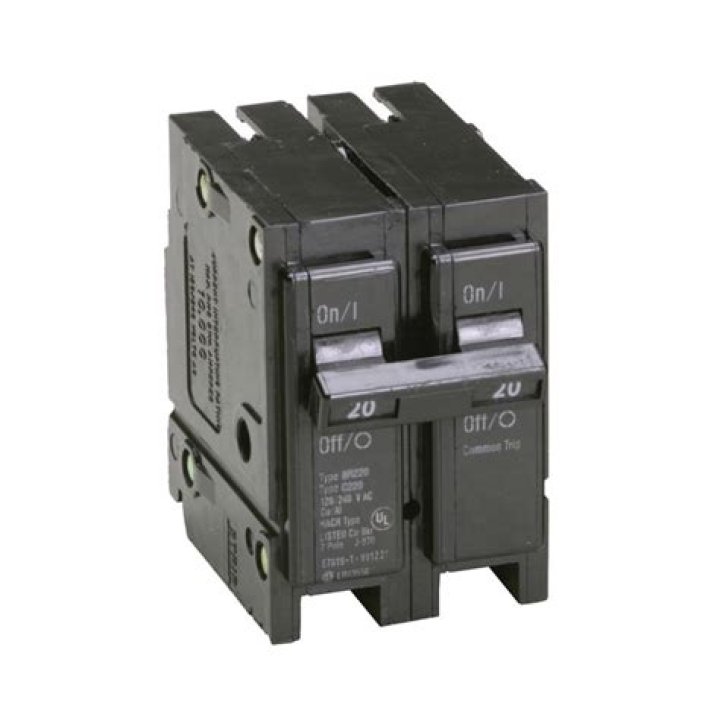

2 pole 20 amp breaker

Double-pole breakers, on the other hand, are typically rated for 20 to 60 amps and supply 240-volt power to large appliances, like electric dryers and ranges.

Is a double 20 amp breaker 40 amps?

A double pole 20-amp breaker is not 40 amp as it is a 20-amp breaker. So, it is only a 20-amp double pole amp breaker and is rated 20 amp.

Is a 2 pole breaker 240v?

A double pole breaker is primarily used with a 240-volt circuit, 20-60 amps and consists of two hot wires.

What size wire do I need for a 20 amp double pole breaker?

You need 12-gauge cable for a 20-amp circuit no matter whether the circuit is 110 or 220 volts, according to Total Home Supply. You won’t be using a neutral wire, so the cable should have only two hot wires, which are red and black, and a bare ground wire.

When should you use a 2 pole breaker?

Double-pole breakers have two hot wires that are connected by a single neutral wire. That means if there’s a short circuit on either of the poles’ hot wires, both trip. These breakers can be used to serve two separate 120-volt circuits or they can serve a single 240-volt circuit, such as your central AC’s circuit.

Can I replace a double pole breaker with two single pole breakers?

Can I replace a double pole breaker with two single pole breakers? Two pole breakers to one pole breaker. You’ll have to return to the double-pole breaker if you decide to use the red wire again. Two single-pole breakers can’t be used for a multiwire circuit.

How many watts can a 20 amp double pole breaker handle?

A circuit running on a 20-amp double-pole breaker can have any combination of heaters up to 3,840 watt. You can install two 1,500 watt heaters if you use just one thermostat.

Does a double 30 amp breaker equal 60 amps?

A main breaker is the same as any double breaker in the box, except that it supplies power to each busbar. The answer is no if you want to draw 60 Amps off a 30 Amp double breaker.

Can I use one side of a double pole breaker?

A double pole switch can be used to control light and a fan or 2 lights on separate circuits. It is easy to wire a double pole switch to work as a single pole switch because only one side is used instead of both. Single pole switch is referred as a single pole, single throw switch.

Can I use a single pole breaker for 220?

Can a single pole breakers for 220? Two hot wires are connected to a single neutral wire. If there is a short circuit on either of the poles, both will trip. The breakers can be used to serve two different types of circuits, or they can serve a single type of circuit.

What breaker is needed for 240V?

Run the cabling from your 240V circuit to the location of your breaker box. Use a 4-strand cable of a gauge designed to operate with the power rating of your breaker. A 15 amp breaker requires at least number 14 gauge wire, while a 20 amp breaker requires at least number 12 gauge wire.

How do you measure amps on a 2 pole breaker?

When you place an amp meter around a wire that comes from a double pole breaker do you add the total of each wire or is testing around one wire give you the answer. For example if I test a 20 AMP double pole breaker. I get 5 Amps around one hot wire and 5 amps on the other hot wire.

How far can you run 12 gauge wire on a 20 amp circuit?

You can run a 12 gauge wire up to 70 feet on a 15 amp circuit. That number drops to 50 feet if you run 12 gauge wire on a 20 amp circuit.

Can 12 gauge wire handle 20 amps?

“Twelve-gauge wire is good for 20 amps, 10-gauge wire is good for 30 amps, 8-gauge is good for 40 amps, and 6-gauge is good for 55 amps,” and “The circuit breaker or fuse is always sized to protect the conductor [wire].”

How far can I run 220v wire?

1 conductors per phase utilizing a #8 Copper conductor will limit the voltage drop to 4.35% or less when supplying 20.0 amps for 400 feet on a 220 volt system.

How many double pole breakers can I put in my panel?

A 150-amp panel would allow a maximum of 30 circuit poles, and a 200-amp panel would allow a maximum of 40 circuit poles. For panelboards not manufactured as “lighting & appliance” panelboards, there is no limit to the number of circuit breakers allowed.

What is the difference between double pole and single pole?

Both single pole and double pole switches can be either single or double throw. A pole refers to the number of separate circuits a switch can control, a single pole switch can operate one circuit whereas a double pole switch can control two circuits. A throw refers to how many positions can be activated by a switch.

How do you wire a 2 pole breaker?

Steps on How to Wire a Double Pole Circuit Breaker
Switch off the main breaker & test for current. Examine the panel’s wiring. Wire strip the circuit wires. Connect your double pole circuit breaker. Reassemble the breaker panel.
