air filter direction

When a furnace filter is placed backwards, the fibers can’t do their job properly. This means your furnace has to work harder to generate the same air flow, resulting in increased energy costs. Particles are also allowed to build up irregularly, making the furnace working even harder to draw air.

Does air filter direction really matter?

HVAC filter direction matters because air flows through it in one direction. While its two sides look the same, one is more porous to allow air to get inside. Otherwise, air can’t pass, and the unit itself must work harder and longer, leading to higher energy consumption and efficiency loss.

Which way does airflow arrow point?

Position the airflow arrow so that it points in the direction the air is flowing. In addition to clean air, filters also protect your HVAC system from debris and dirt buildup. The airflow arrow should point towards the furnace/blower motor to collect harmful particles before it reaches the furnace’s equipment.

Does the arrow point up or down on an air filter?

ANSWER: THE ARROWS ON ANY AIR FILTER NEED TO POINT IN THE SAME DIRECTION THE AIR IS FLOWING. For any air filter, whether it be for an air conditioner or a furnace, the ARROWS ALWAYS POINT IN THE DIRECTION OF AIR FLOW.

How do I know which way the air flows in my AC?

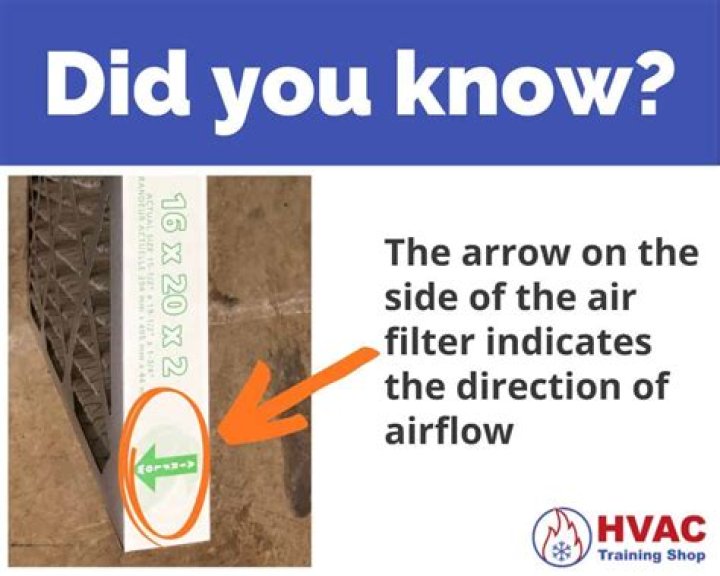

Generally the edge of the filter is marked with an arrow which points in the direction of the airflow. In other words, the air travels from the tail of the arrow toward its point. If there is no arrow, the side that is stronger or reinforced by cardboard or wire mesh is the side the arrow should be pointing to.

What is the direction of air flow?

If you are looking at a furnace filter, find the arrow that indicates the proper air flow direction. That arrow must always face toward the furnace and away from the return duct that carries the air in need of heating or cooling.
