bathroom plumbing rough in dimensions
To know about the bathroom sink plumbing rough in heights you must understand that sink drain lines should be between 18 to 20 inches. The water supply pipes must be some inches higher and it should be 20 to 22 inches from the bathroom or kitchen floor and it is generally installed to the drain line sides.
What is the standard size for bathroom plumbing?
The 1½-inch size is used to capture water that might flow out of a kitchen sink, a bathroom vanity or a tub. The two-inch pipe is commonly used to drain a shower stall or washing machine, and it may be used as a vertical stack for a kitchen sink. A three-inch pipe is what’s used in homes to pipe toilets.
What is rough in plumbing height?
Rough-in plumbing is usually placed at a somewhat lower height, between 18 and 20 inches, to accommodate varying counter heights and sink depths and leave plenty of space for the P-trap and necessary connections.
How far below drain should P trap be?
Maximum Distance
However, the Universal Plumbing Code stipulates that the total developed length of all tailpieces, arms and fittings connecting the drain to the p-trap must be 24 inches or less.
What is the standard rough-in for a sink?
Since there is no building regulation for the minimum kitchen sink height, the standard kitchen sink drain rough-in height can also vary, generally from 20 to 24 inches. Slight variations below or above this range are acceptable for sinks installed at non-standard heights.
Should toilet drain be 3 or 4 inch?
Related Articles. Waste drain pipes for toilets in modern plumbing systems are either 3 inches or 4 inches in diameter. The wider the pipe, the more waste it can move and the less likely it will be to clog. A 4-inch pipe can carry about twice the waste of a 3-inch pipe.
What is plumbing rough?
Rough-in is the stage of a construction project when the various mechanical, electrical, and plumbing lines are brought in. Once the framing is up, the rough-in stage of construction begins. This is when lines are laid out, but final connections are not made until other stages of the project are completed.
What size pipe should a shower drain be?
A 2-inch pipe is the recommended size because showers have a low threshold for flooding, and a 2-inch pipe helps the water drain faster than does a 1 1/2-inch pipe. So, if you are converting from a tub and shower combination to a shower, you’ll likely have to change the drain pipe size.
How many inches should the drain line be installed off the floor?
Discharge hole (vertical): About 16 to 20 inches above the floor; consider drain pipe to be the vertical centerline. Fixture (side to side buffer): From centerline, 15 inches minimum, 20 inches recommended. Fixture (front buffer): Minimum distance to nearest obstruction is 21 inches; 30 inches recommended.
What is the standard height of a toilet waste pipe?
Slightly lower about six inch to six & half WC standard is 7″.

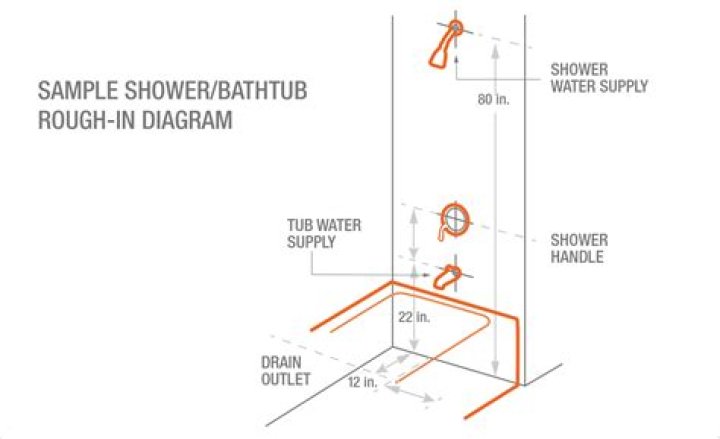

What is the rough in height for a shower valve?
Shower Valve Height
A height of 28 inches, or 2 feet 4 inches, is standard for valves in bathtub shower units. For shower stalls, install the valve at the standard height of 48 inches, or 4 feet. Install faucets at the same height as the valve, equidistant from the valve.
Can you replace a 10 inch rough in toilet with a 12 inch rough in toilet?
Can you replace a 10 inch rough in toilet with a 12 inch rough in toilet? The rough-in for your bathroom plumbing should match the rough-in for the toilet. Even if a toilet is designed for a 10-inch rough-in, you can still install it in a space with a 12-inch rough-in.
Can you replace a 14 inch rough in toilet with a 12 inch rough in toilet?
Replace a 14-inch rough-in toilet with a 12-inch rough-in toilet. You can definitely replace a toilet with a rough-in of 14 inches with one with a rough of 12 inches. The problem with this method is that a 2-inch gap will be left between the toilet tank and the wall. Install an offset toilet flange.
What does 12 inch rough in mean for toilets?
What is 12-inch Rough-in Toilet? When you query about ‘what a 12-inch rough-in toilet means’, it refers to the finished wall and the floor flange opening center gap of about 12-inches. Nowadays, 12-inch rough-in toilets have become standard and have more variations.
How far can p-trap be from shower drain?
The maximum distance between the shower drain and the P-trap is 5 feet. However, the P-trap should be as close to the shower drain inlet as possible. You should even have the P-trap directly under the shower drain for the best results.
What size should a p-trap drain pipe be?
Kitchen sink P-Traps come in 1-1/2” standard size, while bathroom sinks use P-Traps of 1-1/4” standard size. The traps also come in different material types such as propylene, ABS, brass (chrome-plated or natural), and PVC. You should use the material that is currently in place when replacing a P-Trap.
