corner fence post bracing

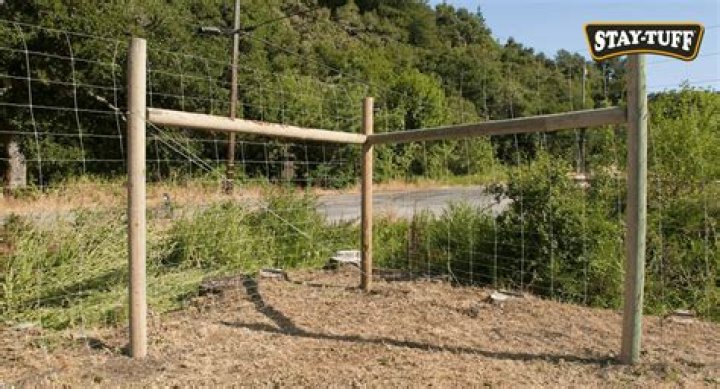

All the extreme tension from the fence structure is held at the corners. Therefore, proper selection, installation and bracing of the corner posts is essential to prevent fence failure. The principle of bracing a corner post is simple. The greatest tension is along the horizontal wire furthest from the ground.

How do you strengthen a corner post?

The first improvement that can be made is to bury the post further into the ground. This will help the post withstand a higher tension. Depending upon soil type, soil moisture and wire tension, your corner or end post will need to be 3 to 5 feet in the ground. Additional depth enables the post to withstand more force.

How high should an H brace be?

Install woven wire about 7 inches above ground level and run one uncharged, preferably grounded, 12 ½ gauge high-tensile wire below the woven wire. For 4 strand smooth high-tensile fence the bottom wire should be at 6-8 inches and can be grounded to avoid voltage drawdown by wet vegetation.

How far apart are H braces?

Double H Brace Pull Assemblies: Double H Brace pull assemblies are required in straight fence spans at a maximum spacing of 660 feet. Brace wire shall be high tensile, galvanized steel, or 9 gauge soft wire.

How far apart should brace posts be?

The four-strand fence with barbless bottom wire works if it’s well-braced, with a wire stay between posts — and no more than 12 feet between posts,” he explains.

How do you brace a 4×4 fence post?

Attach angled 2 x 4 braces to two adjacent sides of the post using one screw for each brace. Drive a stake into the ground near the lower end of each brace. 4. Use a level to position the post plumb (perfectly vertical), checking on two adjacent sides with the level, then fasten the braces to the stakes.
