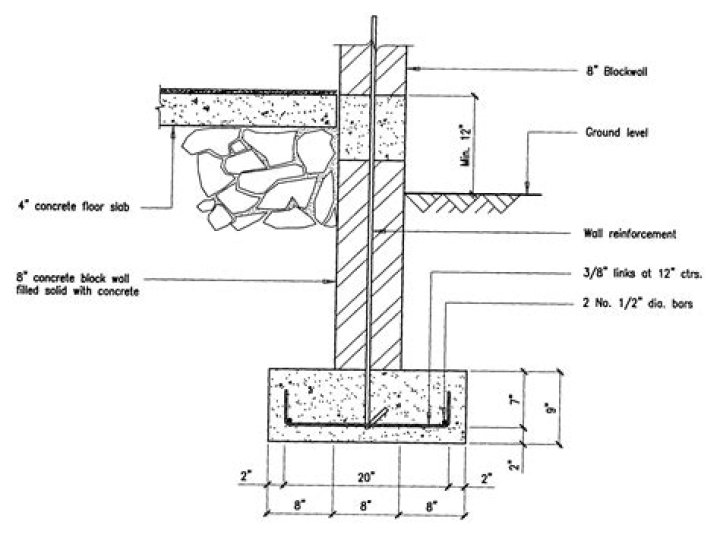

foundation footing detail drawings
The foundation plan is a plan view drawing, in section, showing the location and size of footings, piers, columns, foundation walls, and supporting beams. The foundation plan is drawn from information presented on the floor plan, plot plan, and elevation plan drawings.
How do you draw a footing plan?
Steps to Create a Foundation Drawing
Select location of structure.Select scale for your drawing.From the floor plan, locate outline of foundation walls.Draw foundation walls, columns and piers.Use breaks in the walls to indicate doors, windows, vents and access holes.
What are the 4 types of footings?
There are four examples of shallow foundations that we’ll cover mat, individual footing, combined footing and stem wall. Each has a unique structure and various use cases.
What is a footing plan?
Footing plans provide details on footing depths and widths, slabs and stiffening beams and the type and positioning of steel reinforcement.
What is foundation layout plan?
Layout of foundation plan : After determining the width and depth of foundation, a drawing showing the width of foundations of various walls is prepared. It is known as foundation plan.
What is the standard size of foundation plan?
The foundation should be cast not less than 1′ 6″ to 2′ 0″ below ground, its thickness not less than 9″ and its width not less than 24″ or a minimum of three times the width of the wall immediately supported by it.
What is elevation plan?
An elevation drawing is an orthographic projection drawing that shows one side of the house. The purpose of an elevation drawing is to show the finished appearance of a given side of the house and furnish vertical height dimensions. Four elevations are customarily drawn, one for each side of the house.
How do you read concrete elevations?
Multiply the decimal part of the difference times 12 to find the number of inches. For example, 0.43 x 12 = 5.16. Ignoring the decimal part for now, that indicates that the elevation is 1 foot 5 inches above the benchmark. Multiply the decimal part of the inches value times 8 to find the number of 1/8 inches.
What are the different types of foundations?
5 Types of House Foundations
Basement Foundation. Crawlspace Stem Walls. Concrete Slab Foundations. Wood Foundations. Pier and Beam Foundations.
What are the 3 types of foundations?
Foundation types vary, but likely your house or home’s addition does or will have one of these three foundations: full or daylight basement, crawlspace, or concrete slab-on-grade.
What are the six types of foundation?
Following are different types of foundations used in construction:
Shallow foundation. Individual footing or isolated footing. Combined footing. Strip foundation. Raft or mat foundation.Deep Foundation. Pile foundation. Drilled Shafts or caissons.
What is footing write the different types of footings?
Types of footings:
Wall footing/strip footing.Spread Footings.Isolated footings.Stepped footings.Combined footings.Sloped footings.Mat or raft foundation.Strapped footings.
How many types of footing are there?
There are four types of shallow foundation: Individual footing or isolated footing. Combined footing. Strip foundation.
How do you calculate footings?
How to Calculate Footing Size
Determine the width and length of the cement slab in inches.Divide the width by 12 to convert it to feet. Divide the length by 12 to convert it to feet. Determine the depth or thickness that is required for the footing in inches. Multiply the width by the length and then by the depth.
What is footing in RCC?
What are RCC footings? They are Reinforced Cement Concrete (RCC) footings, and are made up of steel bars that act as a reinforcement to the concrete foundation, which bears the entire weight of the home. The footings transfer the overall weight to the ground easing the load on your home’s structure.
