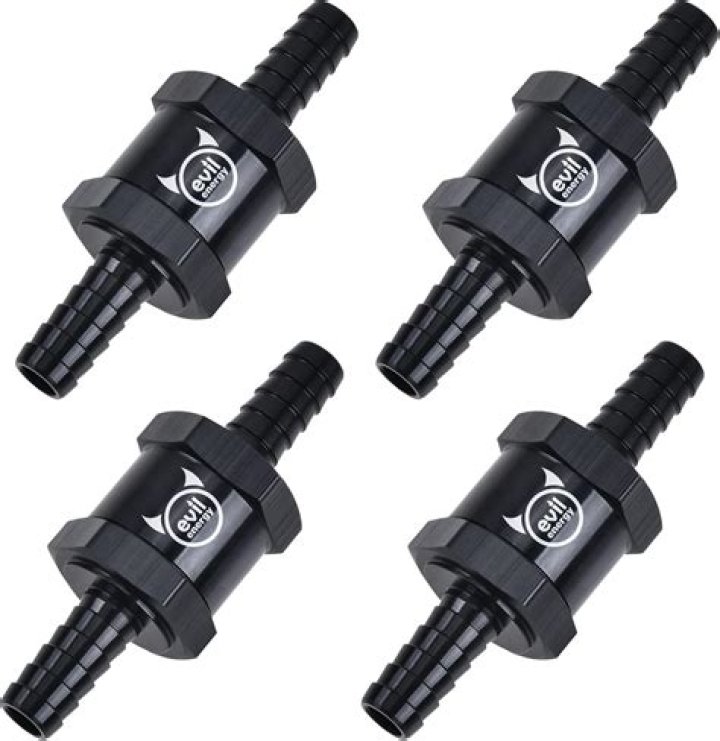

fuel check valve
Fuel check valves are installed in fuel lines. They allow fuel to only flow in one direction and prevent lines running dry, for example.
Where do you put a fuel check valve?
Installation. The check valve is installed on the feed line from the fuel pump to the hardline near the frame, with the direction of flow from the pump to the hardline.
Do you need a fuel check valve?
According to the FUELAB folks, the idea of a check valve is to hold fuel rail pressure, lower the fuel system’s priming time, and help with hot starts. Maintaining the pressure during engine cooling helps to prevent vaporizing of the fuel in the rail, which reduces evaporative emissions.
How much does it cost to replace a fuel check valve?
The Best in Auto Repair
The average cost for air injection system check valve replacement is between $288 and $303. Labor costs are estimated between $57 and $71 while parts are priced at $231.
How do you know if a check valve is bad?
For example, failing check valves will start to vibrate and even lose some internal parts when problems begin to arise. Other symptoms of check valve failure include reverse flow and excessive component wear and damage. Check valves will also emit noises as they start to break down.
How does a one way fuel valve work?
One-way valve means that the fluid can only flow along the water inlet, but the medium at the outlet cannot flow back, commonly known as the One-way valve. One-way valve is a check valve. The installation position of a swing check valve is not restricted.
What is inline check valve?
Inline check valves utilize a check mechanism that functions in the fluid line or media pathway of a process piping system. Oftentimes, these check valves are of a compact design allowing for space saving and/or ease of installation into an existing system.
How does a fuel pump work in a car?
The basic way your modern electrical fuel pump works is by utilizing a DC motor in the pump assembly which draws in the fuel sitting in your gas tank. From there, it sends it up the fuel line and into the fuel rail where it can be injected into a cylinder. It then mixes with air and a spark to create combustion.
Does a return line need a check valve?
A check valve on the sump return line isn’t necessary for an aquarium with a sump. A properly designed aquarium, sump, drain, and return setup will nullify the need for a check valve.
Do mechanical fuel pumps have check valves?
A mechanical fuel pump has a two-port check valve, one that is located on the pump’s inlet and one that is located on the pump’s outlet. The check valve is designed to make the fuel in the vehicle only flow in the correct direction from the fuel pump and to maintain pressure.
How much is a fuel pressure regulator cost?
The average cost for fuel pressure regulator replacement is between $257 and $307. Labor costs are estimated between $98 and $124 while parts are priced between $159 and $183. This range does not include taxes and fees, and does not factor in your specific vehicle or unique location. Related repairs may also be needed.
What are signs that your fuel pump is going out?
If you notice these six signs, consider taking your car to your local dealership to have the fuel pump replaced.
Whining Noise From the Fuel Tank. The Engine Sputters or Surges. Trouble Starting the Car. Loss of Power Under Load. Reduced Gas Mileage. Stalling at High Temperatures.
How do you test a well pump check valve?
Stand near the valve and have an assistant turn the water supply on for five seconds before quickly shutting it off again. Put your hand on the valve and place your ear near to it. If you feel or hear any water running, it is a sign that the valve’s seal is leaking.
