GCode G90 and G91 Absolute and incremental Positioning

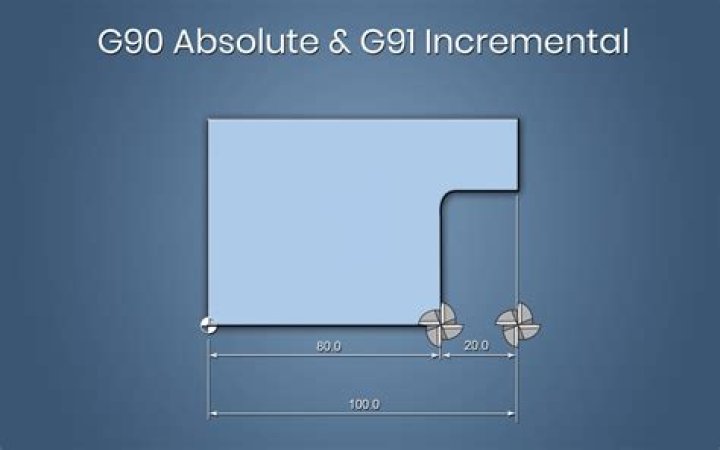

In a CNC Programming the tool movement end point is always positioned by using two positioning G-Codes. They are: 1) G90 Absolute positioning. 2) G91 Incremental Positioning.
What is M99 G code?
M99 is used at the end of a subprogram, local subprogram, or macro to return back to the main program.
What is G92 G code?
G92 G-code
G92 means “set an offset in all coordinate systems”. The machine coordinates are the position of the machine relative to the point at which the endstops are hit. This is by opposition to the workspace coordinates, which are the coordinates you use to position a job you want to do.
What is G10 G code?
It’s simple: G10 g-codes eliminate data entry errors and save setup time. Suppose you have a fixture plate on the machine. It allows you to install fixtures at repeatable known locations. But, you need to set that up by making sure the work offsets are properly set for the particular fixtures you’re using.
What does G90 mean?
The designation G90 is simply a coating thickness of 0.9 oz/ft2 as specified in A653 and is equivalent to 0.45 oz/ft2 or about 0.76 mils per side (it is important to state per side because the oz/ft2 method takes into consideration the coating thickness on both sides of the steel, such as in the case of sheet steel).
Is G90 a modal?
G90 ( Switch back to absolute coordinates )
As you can see, gcode G90 and gcode G91 are modal.
Do loops CNC programming?
A do loop simply instructs the MCU to repeat a series of NC program statements a specified number of times. The flowchart given in Figure 11-2 illustrates the basic construct of a do loop. Usually, looping capability on a CNC controller is an optional item, there- fore not all controllers have it.
What is meant by canned cycle in CNC?
A canned cycle is a combination of machine movements that perform machining operation like drilling, milling, boring and tapping. This cycle simplifies the program by using a single block with a G-code to specify the machining operations usually specified in several blocks. This cycle is also called as fixed cycle.
What is sub programming in CNC?
Subprograms are normal CNC programs which are called from a program (normally called main-program) to add some kind of repeatable machining operation.
What is G41 and G42?
G41 is left compensation and G42 is right compensation. On a CNC machine, it is usually recommended to use climb milling, this needs to be taken into consideration when writing our programs and deciding which direction to apply cutter compensation.
What is G52 Haas?
If HAAS is selected, G52 is a group 00 G-code. This is a global work coordinate shift. The values entered into the G52 line of the work offset page are added to all work offsets. All of the G52 values will be set to zero (0) by a G92.
What is a G50 code?
G50 can be used to limit the maximum spindle speed. The control will not allow the spindle to exceed the S address value specified in the G50 command. This is used in constant surface feed mode (G96). This G code will also limit the secondary spindle on DS-Series machines.
What is G98 in G code?
Fanuc controls provide modal G codes that control where the tool ends up following a cycle. The G98 code causes the tool to return to the initial level after each canned cycle operation; the G99 code causes the tool to return to the R-point level after each canned cycle operation.
