how to connect steering wheel controls to aftermarket radio without adapter
This subject is a little complicated, but the basic answer is that, no, you can’t connect steering wheel audio controls to an aftermarket radio without an adapter.
What color wire is the steering wheel control?
There are two wires used for steering wheel controls. Each interface (either stand-alone or as part of a multi-function product) has one blue/yellow wire and one black wire with a stereo-type 3.5mm plug. Both wires accomplish the same purpose: transfering the SWC signals to the radio.
What Are Key 1 and Key 2 wires?
Key 1 and 2 are used for steering wheel control as well as some other applications like radios. You need to connect the key 1 or key 2 with the original steering wheel control wire. The button light control wire is referred to as “Illum” wire.
What is the SWC wire?
SWC is an acronym standing for Steering Wheel Control. An SWC interface is a module that connects a vehicle’s OEM steering wheel controls with an aftermarket headunit or radio replacement unit.
Do I need a radio interface?
A: A radio replacement interface is required in that vehicle, even if it does not have steering wheel controls, in order to maintain the integrity of the vehicle’s CAN network and provide accessory power to the aftermarket radio.
What is a SWC harness?
Aerpro Steering Wheel Control Harness (SWC) adapters allow use of a vehicles factory steering wheel audio controls with an aftermarket source unit by converting the commands to a code that an aftermarket head unit can recognize.

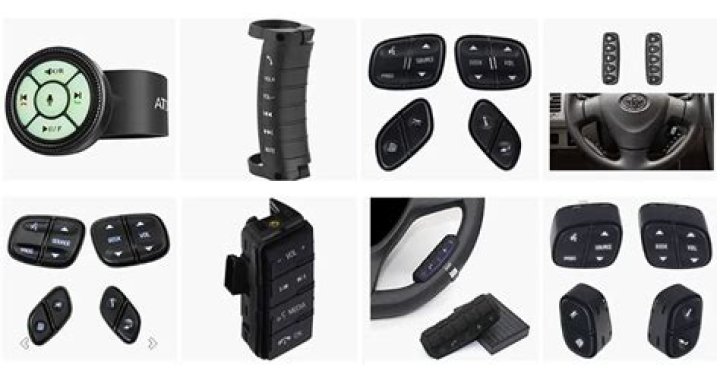

Can we add steering mounted controls?
Yes, you can still install steering mounted controls in your car, if your car didn’t came with them. You can add steering mounted controls when you install a new stereo.
What is ACC wire for car stereo?
ACC wire tells the car stereo that the system is powered. This is necessary for the activation of the car stereo. Typically, the ACC wire is red and a little smaller than the main power. If there is no ACC wire, you can wire it to the cigarette lighter or the ignition.
What is brake wire on a car stereo?
It’s supposed to keep you from playing dvd’s and making calls when the parking brake is disengaged, but you can just keep it constantly fooled by grounding it.
How do you connect a steering wheel control?
Installing a steering wheel audio control adapter | Video Transcript
Plan the wire connections. Disconnect the battery. Remove your stereo from the dash. Connect the adapter harness and your stereo. Re-install the stereo. Programming the steering wheel control adapter.
What is SWC adapter?
Steering wheel control input adapter for 2 wire resistive radios. Many aftermarket radios now feature a two-wire resistive SWC connection. These radios’ SWC wires are often identified as KEY 1 and KEY 2, or SW 1 and SW 2.
What is the orange wire in a car stereo?
The normal use of orange and orange/white wires is orange is for variable voltage to control display illumination dimming (i.e. the head unit display dims along with the other dash lights) while orange/white is a simple on/off signal of whether the dash lights are on (the head unit has only bright and dim display
Where do you connect the pink wire on a car stereo?
Depending on the model you have, pink wire with blue or green strips goes to the left or right rear speakers.
What is an ISO plug?
ISO is an acronym for “International Organization for Standardization”. The distinctions between “ISO” are usually by their designated numbers. Created in 1995, ISO 10487 is a standard connector that allows you to connect an aftermarket headunit into your car with ease.
