ledger board flashing

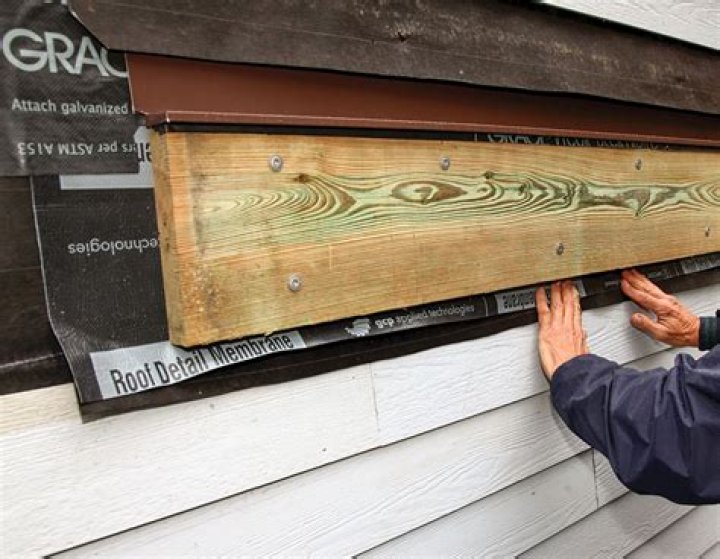

How to Flash a Deck Ledger Board. If you cut out your siding to install a ledger board, careful steps must be taken to ensure that moisture cannot reach your house. Infiltrating rainwater can travel downward, sideways and even upward, so special flashings must be used.
What is flashing on ledger board?
You will have to install ledger board flashing also known as a drip edge to act as a barrier to keep water out. If water can penetrate into the house framing it can result in severe mold, decay, and overall serious and expensive damage.
Can I use flashing tape on a deck ledger board?
Protect your Deck Substructure from Moisture
Applying a deck flashing tape shields the tops of joists, rim joists, ledger boards and beams from moisture.
Can you put flashing over pressure-treated wood?
Never use galvanized steel or aluminum flashing in contact with an ACQ pressure-treated wood ledger board because it will corrode. Vinyl flashing is the least expensive option, but it may not work as well in areas with extreme temperature fluctuations.
When should I flash my deck?
Deck joist flashing tape is used to protect your deck’s substructure – commonly made with traditional lumber – from moisture.
When to Use Deck Joist Flashing Tape
Prevents moisture penetration of joists.Protects the lumber from rot.Extends the life of the deck’s substructure.
Do I need deck flashing?
Don’t skimp on flashing anywhere you have exposure on the exterior of your home: windows, doors, shingles, and decks. The International Residential Code (IRC) requires using corrosion-resistant flashing.
Is deck flashing necessary?
“Flashing is required where exterior porches, decks, or stairs attach to a wall or floor assembly of wood frame construction.
Should a ledger board be pressure treated?
Installing the Ledger Board
The lumber for the ledger and all framing members must be pressure-treated for exterior use. The ledger will establish the height of your deck. This is an absolutely critical connection and must be installed properly to ensure the strength and safety of the deck.
How far apart should lag bolts be on a ledger board?
The fasteners must be compatible with pressure-treated lumber to prevent corrosion. Typically, you will need to install your bolts alternating high and low 2″ from the top and bottom of the ledger board. As a rule of thumb, bolts can be spaced 16″ on center for supporting joist span up to 12′ in length.
How many lag bolts do you put in a ledger board?
The International Residential Code lists two fasteners for directly attaching ledgers to a house: 1/2-inch-diameter hot-dip-galvanized hex-head machine bolts and 1/2-inch-diameter hot-dip-galvanized lag screws.
What is G tape used for?
G- Tape is an exceptional acrylic adhesive flashing tape that’s an instant favorite of anyone who’s building a deck. It’s lightweight and tears cleanly with just your hands- no scissors or knife needed! Repositionable when installing, but after 24 hours becomes permanent.
How do you attach flashing to wood?
Install a tube of construction adhesive in a caulking gun. Apply a generous amount of adhesive along the back of both fins of the flashing. Reposition the flashing at the deck-to-wall intersection and align the cuts at the lower edge with the sides of the corresponding joists. Press the flashing firmly into place.
Does galvanized flashing rust?
This is the least expensive and least durable metal flashing material. It is not recommended in harsh climates or in contact with masonry materials or pressure treated wood. Like other galvanized products, the galvanic coating will eventually wear away exposing the underlying steel to corrosion.
How quickly does pressure treated wood corrode aluminum?
Does Treated Wood Corrode Aluminum? Yes. Most of the new chemical treatments contain copper and should never come in direct contact with aluminum. Total failure caused by corrosion can occur in less than a year.
