mobile home tie downs
Unless factory installed, the connection device must be approved by the department pursuant to Rules 15C-1.0105 and 15C-1.0107, F.A.C. At least four (4) anchors and straps are required (i.e., 16 per double-wide home) at the end of each section of the mobile/manufactured home.
What is a diagonal tie down?
A diagonal tie down is used to tie the frame down to the ground. This combats winds from lifting up the home. Single-wide homes require both types of tie downs. Due to weight factors, a double-wide mobile home only requires the diagonal tie down to anchor the home and frame to the ground.
How long do tie downs last?
But the Federal Emergency Management Agency (FEMA) has a recommendation for scheduling regular tie-down inspections: check anchors and strap tension every two years for coastal areas, and every five years for inland locations (more than 3,000 feet from the coast), and replace corroded anchors and straps as necessary.
How far apart are mobile home tie-downs?
2) The year the home was built.
After 1994, tie-downs are placed approximately five feet apart. Additional stabilization bracing is also now required on double-wides.
Do mobile homes need tie-downs?
Manufactured homes must have anchors and tie-downs to keep them in place during high winds. Compared to site-built homes, manufactured homes are relatively lightweight. They have flat sides and ends, and they are built on frames rather than foundations.
How do you secure a mobile home?
Some of the best ways to add security to your manufactured home include:
Check Windows for Warping. Use Dowels in Sliding Doors & Windows. Check Exterior Doors for Stability. Add Extra Locks. Invest in A Locking Safe. Use Light Timers Inside to Appear Home. Install Motion Lights Outside. Install Home Alarms or an Alarm System.
How are manufactured homes anchored?

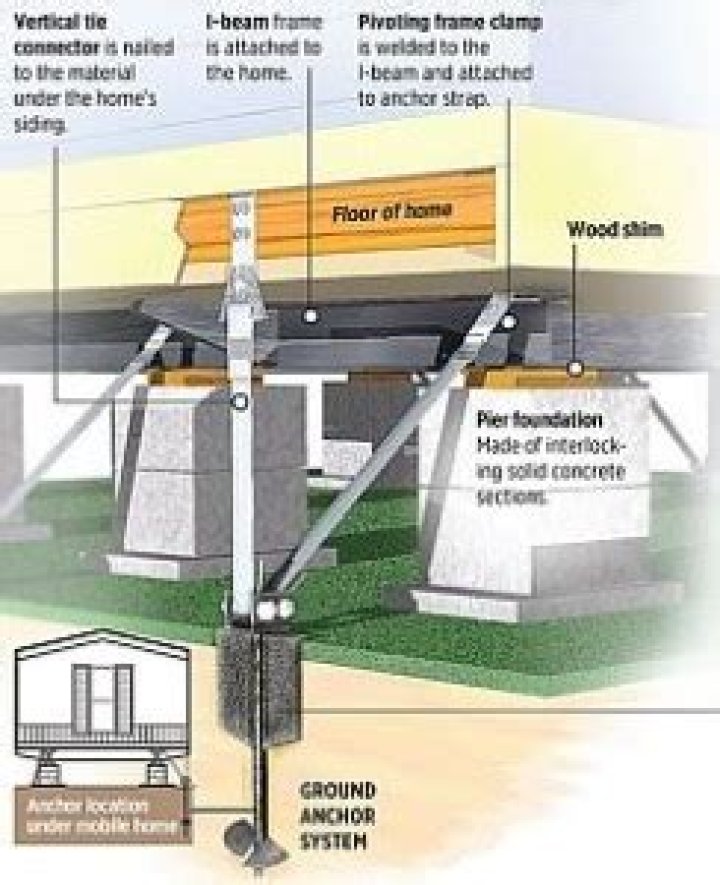

How Is The Anchoring System Installed? Anchors are driven into the ground to hold your home down against wind forces. They go into the ground first and then steel straps are attached. The straps connect the anchors to a main I-beam on your home’s steel frame.
How many tie downs double wide mobile home?
A single-wide up to 60 ft. long would get 3 over-the-roof tie-downs; A single-wide 61 ft. or longer would get 4 over-roof tie-downs. A double-wide home gets over-roof tie-downs only if they were installed by the manufacturer.
How many tie downs do you need for a double wide?
For example, if you wish to install your mobile home in a zone one area, you’ll need two vertical ties per side and three diagonal ties per side. But if you wish to install your home in a zone two area, you’ll need two vertical ties per side and four diagonal ties per side.
How many tie downs are required for a 20 foot load?
What is the minimum number of tie downs for a 20 foot load? Two. Cargo should at least 1 tie down for each 10 feet of cargo.
How strong are mobile home anchors?
Manufactured housing anchors are tested to HUD regulation 3280 to withstand a total of 4725 lbs.
How long are mobile home anchors?
(1a) This is an inspection photo of anchor stems used to anchor the mobile home to the ground. Both anchors are 31 inches in length.
How tight should mobile home straps be?
Straps should be tight and straight. The manufacturer’s guidelines can be consulted for determining proper tension of the strap. Replace straps and anchors that show signs of corrosion or damage. A longitudinal tie-down system can be installed as an additional safety feature.
How are mobile homes secured in Florida?
Mobile homes should ALWAYS be tied down. In fact, Florida law requires manufactured home owners to secure their homes using anchors and tie-downs. Homes without proper tie-downs are more vulnerable to high winds.
Are tie downs required in Arizona?
Answer: Yes, all mobile homes, and used/new manufactured homes must be anchored using an approved tie down system.
