neutral and ground on same bus bar
The answer is never. Grounds and neutrals should only be connected at the last point of disconnect. This would be at main panels only.
Can you tie neutral and ground together?
No, the neutral and ground should never be wired together. This is wrong, and potentially dangerous. When you plug in something in the outlet, the neutral will be live, as it closes the circuit. If the ground is wired to the neutral, the ground of the applicance will also be live.
Are the neutral and ground conductor wires connected to the same bus bar in the circuit breaker panel?
Ground Bus Bar

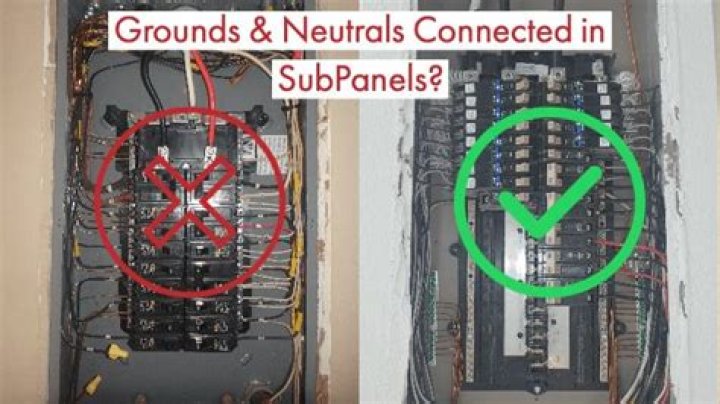

Some service panels have a separate bus bar for ground-wire connections, instead of a neutral/ground bus. In this case, the ground bus is electrically connected to the neutral bus in main service panels only; in subpanels, the ground bus and neutral bus are not connected to each other.
Should neutral and ground be bonded?
A high-resistance reading (typically greater than 200 ohms) indicates that there are no metallic paths between the panel and the transformer, and therefore a neutral-to-ground bond in a grounded system is required.
Do you have to separate neutral and ground in main panel?
The National Electrical Code (NEC) requirement for separated neutrals and grounding wires in a subpanel and separate neutral and grounding conductors back to the main panel, when both panels are in the same building, dates to the 1999 revision.
What happens if neutral touches ground?
In Short if neutral wire touches a earth wire,
An earth wire carrying load current is a risk of electric shock because a person touching this earth may present an alternative path for the load current and thus the risk of electric shock.
Can neutral and ground wires touch?
This is just wrong. Don’t do this. Neutral and ground should ONLY be bonded at the main panel.
Can common and ground be connected together?
Whenever there is a potential difference between two ends of a ground/common path, or between two ground/common points which are connected together, the resultant current flow and voltage is what is called a ground loop.
Are ground and neutral the same?
a ground and a neutral are both wires. unless they’re tied together with other circuits, and not a ‘home run’ back to the panel, there is no difference between the two where they both end up on the same bus bar in the box. They are both wires, but they serve very different purposes in a residential home circuit.
What is the difference between neutral bar and ground bar?
Neutral bars have a heavy, high-current path between the bar and neutral lug, which is itself isolated from the chassis It is obvious that the neutral lug-to-bar connection is heavy, and designed to flow a lot of current all the time. Ground bars are, by design, in direct contact with the panel chassis.
Can you touch the neutral bus bar?
You can touch a neutral bus bar assuming the circuit is correctly grounded. The reason this is possible comes down to the amount of voltage in a current. The current passing through to a neutral bus bar will already have been used by the load.
