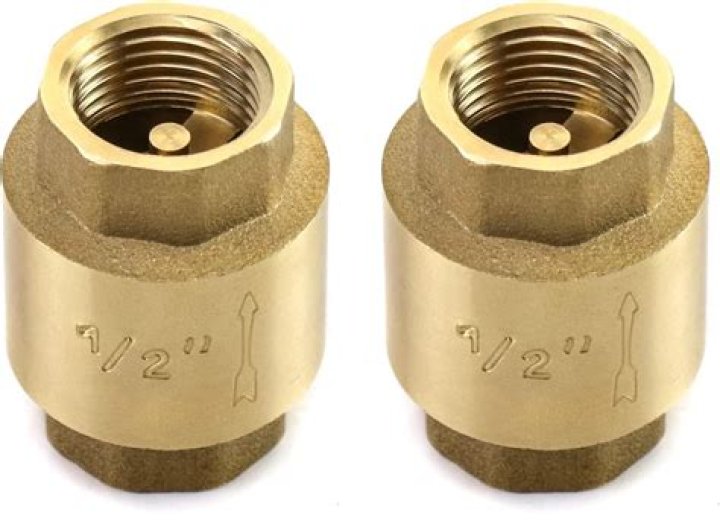

one way check valve
A check valve, non-return valve, reflux valve, retention valve, foot valve, or one-way valve is a valve that normally allows fluid (liquid or gas) to flow through it in only one direction.
What is the difference between a check valve and a non-return valve?
A non-return valve lets the fluid flow in one direction. When fluid in the line reverses direction, a check valve prevents backflow by allowing flow in one direction. The check valves are usually designed for a particular pressure.
What is the difference between a check valve and a one-way valve?
The difference between one-way valve and check valve: One-way valve is a control type One-way valve, and check valve is a non-control type One-way valve. That is: One-way valve is used to provide pressure, and its main function is to maintain pipeline pressure.
Does a check valve go before or after a pump?
On booster pump applications, a check valve can be placed on the suction or discharge of a centrifugal pump. If an additional check valve is required, it should be placed after the pressure tank to allow the pump and discharge pipe to remain pressurized.
What are the 5 types of check valves?
Most common types of Check valves are swing, lift (piston and ball), butterfly, stop and tilting-disk.
Where is a single check valve used?
A single check valve can be used for fluid category 2 protection, where there may be an aesthetic change such as temperature, taste or odour. A double check valve is used for fluid category 3 protection, where there is a risk of substances of low toxicity such as common disinfectants.
When should check valves be used?
As a safety device, the check valve is important when there is separation between an area of high pressure and one of low pressure. One such circuit is the accumulator, which often employs the use of two check valves.
Does a check valve reduce flow?
Check valves also known as “one-way” valves are autonomously operated unidirectional valves that allow fluid to flow in a singular direction, thus reducing or preventing backflow.
How much pressure is needed to open a check valve?
The minimum upstream pressure required to operate the valve is called the cracking pressure, generally between 1 and 5 psi. Check valves are designed specifically with this number in mind. The degree of opening on a check valve is determined by the flow rate.
What happens when check valve fails?
Symptoms of a Failing Check Valve
For example, failing check valves will start to vibrate and even lose some internal parts when problems begin to arise. Other symptoms of check valve failure include reverse flow and excessive component wear and damage. Check valves will also emit noises as they start to break down.
What is swing check valve?
A swing check valve is mounted with a disc that swings on a hinge or shaft. The disc swings off the seat to allow forward flow and when the flow is stopped, the disc swings back onto the seat to block reverse flow. The weight of the disc and the return flow has an impact on the shut-off characteristics of the valve.
What is the function of a one-way valve in a hydraulic system?
The simplest valve is the one-way valve. It is used to keep the piston that moved up as a result of pressure on the hydraulic liquid, in position. The valve is necessary because unlike gases, liquid cannot be compressed.
What are the different types of check valves?
Check valves are unidirectional valves that provide unobstructed flow in one direction as long as flow pressure remains constant and protect the piping system against reverse flow. The three main types of check valves we offer are ball, piston, and stop check valves.
What is the purpose of a two way check valve?
A two-way check valve allows the source applying the higher pressure to shift the shuttle so that the higher pressure will be directed to the delivery port. With this piping arrangement, the vehicle can have a failure in either circuit without the spring brakes applying auto matically.
