p0121 code
What repairs can fix the P0121 code?
Repairing or replacing the TPS connector.Repairing the wiring as necessary.Replace the TPS with a new sensor.
What causes a P0121 code?
When code P0121 occurs, it means that your Engine Control Module (ECM) recognized that your throttle position “A” circuit’s expected output voltage has either gone above or below the sensor’s expected range. When code P0121 is triggered, your ECM will go into failsafe mode.
How serious is a throttle position sensor?
If left unattended, the faulty throttle position sensor might cause your car to shake heavily. This in turn will put a lot of pressure on the motor and transmission mount, eventually causing it to give out and requiring you to fork out additional money, to repair these issues as well.
What code is a bad throttle body?
A faulty throttle body is one of the common causes of code P0121.
How much is a TPS sensor?
The average replacement cost for the throttle position sensor is anywhere from $110 to $200. The parts cost is anywhere from $75 to $105 while the labor cost is anywhere from $35 to $95.
Where is the throttle pedal position sensor located?

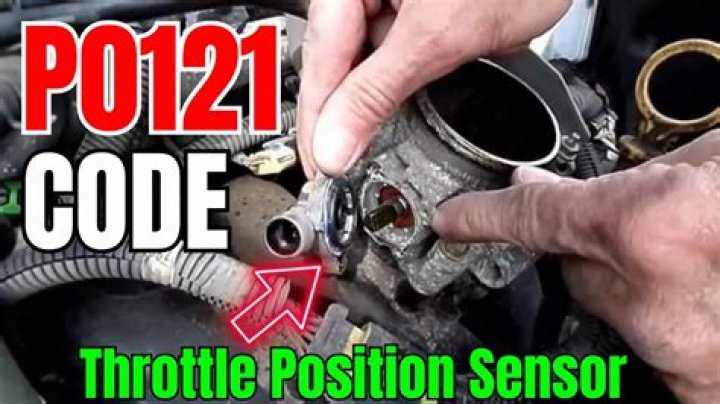

A throttle position sensor (TPS) is a sensor used to monitor the air intake of an engine. The sensor is usually located on the butterfly spindle/shaft, so that it can directly monitor the position of the throttle.
What happens when you unplug throttle position sensor?
If your TPS has become unplugged or is in need of repair, your car will start to accelerate. However, it will only go up to a certain speed. In most cases, it will stay between 20 to 30 MPH. There could likewise be a lack of power that won’t allow you to accelerate.
Can a TPS sensor cause no start?
When a TPS goes bad, then the car’s throttle body won’t function properly. It could either stay shut or it won’t close properly which is a severe issue. If it stays shut then your engine is not going receive air and it won’t start.
Is it hard to replace a throttle position sensor?
When a throttle position sensor goes bad, your vehicle may stall or run rough at idle, and may stumble upon acceleration. The replacement of the TPS is a straightforward procedure that should take an amateur mechanic less than an hour to complete.
Can I clean my TPS sensor?
During this process, the throttle position sensor should not be cleaned due to the possibility of contamination or wire damage. The best way to preserve the sensor is to remove and replace it after cleaning is finished.
Do you have to reset computer after replacing throttle position sensor?
Do You Have To Reset Computer After Replacing Throttle Position Sensor? Once the throttle body has been replaced, your engine will eliminate the pending code by detecting any engine light on and the issue going away. The ECM (computer) might reset itself if a hard permanent code was used in it.
What would cause a throttle position sensor to keep going bad?
Code errors can cause your throttle position sensor to work erratically or incorrectly. Otherwise, you’ll need professional software to reprogram your sensor. This job is best done by a professional mechanic. If your sensor just needs repairs, it could be the result of faulty or loose wiring.
What are the symptoms of a defective throttle position sensor?
Symptoms Of A Bad Throttle Position Sensor
#1. Rough Idling. #2. Check Engine Light Illuminated. #3. Frequent Engine Stalling. #4. Poor Fuel Economy. #5. Limp Mode Activated. #6. Difficulty Shifting Gears. #7. Weak Engine Performance.
What happen if throttle body is dirty?
When the throttle body gets dirty, it has a direct effect on how smoothly the engine operates. Signs indicating a problem include rough idling, jumpy or sluggish acceleration, poor fuel economy, and stalling. With the use of a throttle body cleaning product, the dirt and debris buildup are easily removed.
Should I clean or replace throttle body?
While throttle-body cleaning is good preventative car maintenance, it should also help engine drivability. In fact, if you’ve noticed a rough idle, stumbling initial acceleration or even stalling – all when the engine is fully warmed up – a dirty throttle body could be the culprit.
Will a dirty throttle body throw a code?
Will A Bad Throttle Body Throw A Code? If the voltage value of your tps is either not present, sporadic, slow, or constant, it can cause your computer to have trouble with the check engine light, which can be a sign of a faulty tps.
