To plot a point in the polar coordinate system, start with the angle. If the angle is positive, then measure the angle from the polar axis in a counterclockwise direction. If it is negative, then measure it clockwise. If the value of r is positive, move that distance along the terminal ray of the angle.

What does a polar graph show?

Polar curves are defined by points that are a variable distance from the origin (the pole) depending on the angle measured off the positive x-axis. Polar curves can describe familiar Cartesian shapes such as ellipses as well as some unfamiliar shapes such as cardioids and lemniscates.

What is the polar axis on a graph?

The line segment starting from the center of the graph going to the right (called the positive x-axis in the Cartesian system) is the polar axis. The center point is the pole, or origin, of the coordinate system, and corresponds to r=0.

What is the coordinate of a polar point?

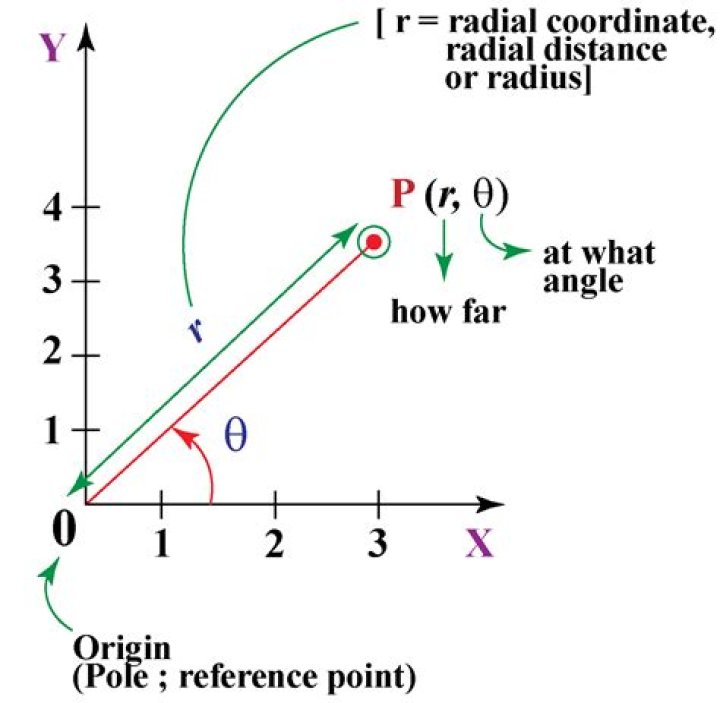

The polar coordinates (r,θ) of a point P are illustrated in the below figure. As r ranges from 0 to infinity and θ ranges from 0 to 2π, the point P specified by the polar coordinates (r,θ) covers every point in the plane.

How do you draw a polar diagram?

How to Create a Polar Plot in Excel
Polar Plot – Free Template Download.Getting started.Step #1: Set up a helper table.Step #2: Compute the Angle (theta) values.Step #3: Compute the Radius values.Step #4: Copy the last Radius values into the helper row.Step #5: Calculate the x- and y-axis values for each company.

How do you read a polar chart?

If an angle is negative, then the direction of the measurement of the angle is opposite to the direction of the graph. In the below polar graph, 150° and −210° reach the same position. The angle −210° means the angle is measured in the opposite direction to the direction of the graph, which is anticlockwise.

Why do we need polar graphs?

Explanation: From a physicist’s point of view, polar coordinates (randθ) are useful in calculating the equations of motion from a lot of mechanical systems. Quite often you have objects moving in circles and their dynamics can be determined using techniques called the Lagrangian and the Hamiltonian of a system.

How do you determine the polar coordinate of the line?

Take the equation of a straight line in Cartesian coordinates such as Ax + By + C = 0. For polar coordinates just simply substitute x = r*cos(theta) and y = r*sin(theta). You get Acos(theta) + Bsin(theta) + C/r = 0, which is your equation in polar coordinates.

What are polar and rectangular coordinates?

Polar Coordinates. In a rectangular coordinate system, we were plotting points based on an ordered pair of (x, y). In the polar coordinate system, the ordered pair will now be (r, θ). The ordered pair specifies a point’s location based on the value of r and the angle, θ, from the polar axis.

What is the initial line in polar coordinates?

In polar co-ordinate system the position of a point on the reference plane is uniquely determined referred to a fixed point on the plane and a half line drawn through the fixed point. The fixed point is called the Pole or Origin and the half line drawn through the pole is called the Initial Line.

What is the polar representation of the y axis in the rectangular coordinate system?

Graphing the point (0,3) on the rectangular coordinate system reveals that the point is located on the positive y-axis. The angle between the positive x-axis and the positive y-axis is π2. Therefore this point can be represented as (3,π2) in polar coordinates.

How do you graph a negative polar coordinate?

Because the radius is negative, move along the left x-axis 1/2 of a unit. Then rotate the angle in the positive direction (counterclockwise) pi/3 radians. You should arrive at your destination, point F.

How do you convert from Polar to Rectangular?

To convert from polar coordinates to rectangular coordinates, use the formulas x=rcosθ and y=rsinθ.
