psi per foot of water

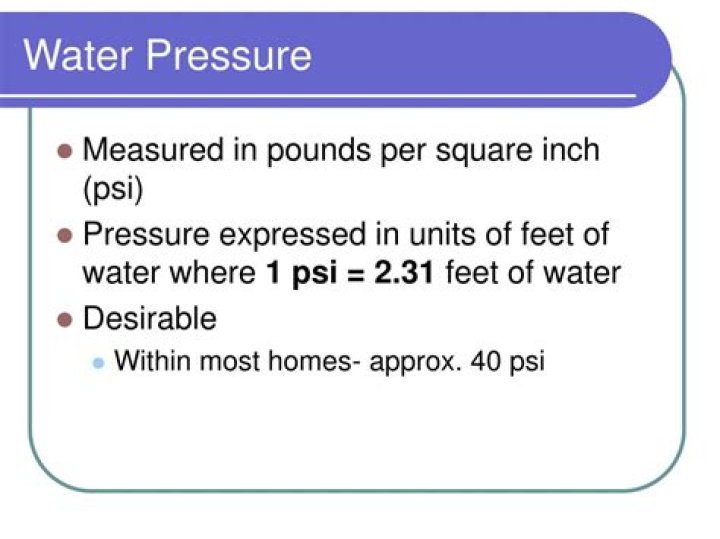

The relationship between PSI and feet of head is that 2.31 feet of head = 1 PSI. Translated, that means that a column of water that’s 1-inch square and 2.31 feet tall will weigh 1 pound. Or, one-foot column of water that’s 1-inch square weighs . 433 pounds.
What is the pressure of 10 feet of water?
Ten feet of water would exert a pressure of 10 X . 433 4.33 pounds per square inch. The same relation of height to pressure holds true, no matter what the area of vertical liquid column.
What is the PSI at 100 ft of water?
If the top of a full water tank is 100 feet above the ground, the 100 ft. of water causes 100 ft. x 0.433 psi per ft. of column or 43.3 psi pressure at ground level.
What is the PSI at 1000 feet underwater?
Each 10 metres (33 feet) of depth puts another atmosphere (1 bar, 14.7 psi, 101 kPa) of pressure on the hull, so at 300 metres (1,000 feet), the hull is withstanding thirty atmospheres (30 bar, 441 psi, 3,000 kPa) of water pressure.
How do you calculate PSI of water?
Determine the water pressure at the bottom of a full cylinder on its side. When the radius is in feet, multiply the radius by 2 and then multiply the product by 0.4333 to get the water pressure in PSI. When the radius is in meters, multiply the radius by 2 and then multiply by 1.422 to get PSI.
What is the water pressure at 33 feet?
This means that at a depth of 33 feet deep in the ocean, there is a total pressure of 29.4 pounds per square inch (psi). This would be 2 ATMs of pressure. One ATM from the water, + one ATM from the water. We call this the ambient pressure or absolute pressure.
How much PSI can a human take?
NCBI provides a short paper with a theoretical limit of 1000m for humans, based on data we have collected from saturation divers to date. That would be 100atm of pressure. Somewhere in between is the claimed record for deep diving which is roughly 600m. Slightly higher than that, we find synthetic testing of Hydreliox.
What is the water pressure at 200 meters?
Therefore the top of the water column inside the tube must be 200 meters lower than sea level, since a 200 meter high column of water exerts a pressure of 20 atmospheres.
What is the water pressure at 100 meters?
At 100m, water pressure is 10bar, relative to the surface. But the absolute pressure is 11bar (1bar is the atmospheric pressure on the water surface, plus 10bar water pressure).
How do I calculate PSI?
Use the formula pressure P = 0.43h where h is the water column in feet. We use the constant 0.43 (lb/in2)/ft because this is the amount of pressure 1 foot of water places on a surface below it regardless of the volume of water. meaning 860 psi of force is being exerted on the submarine.
Are submarines pressurized?
Pressure increases by 1 atmosphere every 10 meters. So, yes—that submarine at 300 meters has a pressure on the hull of 31 atmospheres. Because the internal and external forces are not equal (but the surface areas are), there is a much greater force pushing on the outside of the hull than the inside.
At what depth will water crush you?
Human beings can withstand 3 to 4 atmospheres of pressure, or 43.5 to 58 psi. Water weighs 64 pounds per cubic foot, or one atmosphere per 33 feet of depth, and presses in from all sides. The ocean’s pressure can indeed crush you.
