tandem breaker

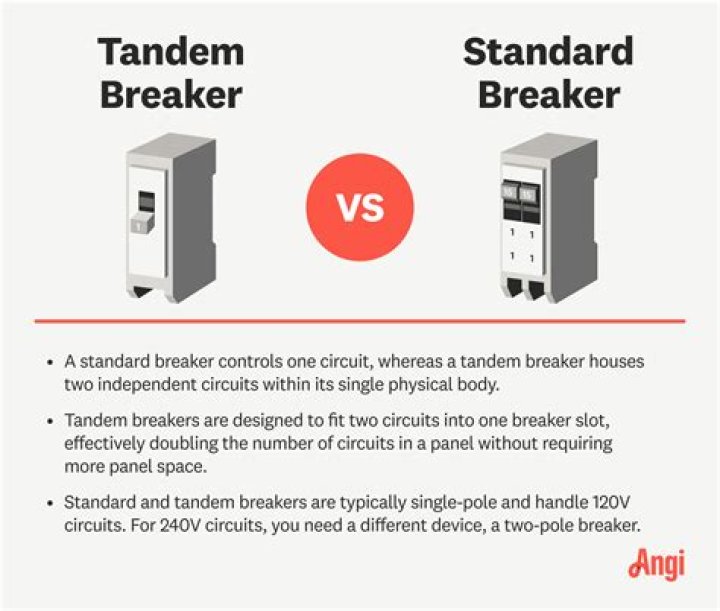

A tandem circuit breaker is a double circuit breaker that takes up the space of a single circuit breaker on a panelboard. You’ll also hear them called duplex, slimline, twin, half-height, half-inch, double and wafer breakers, depending on local customs.
Are tandem breakers legal?
Tandem breakers are safe and legal to use only when the panel is designed for them and only in the slots that accept tandem breakers. Look at the manufacturer’s labeling on the inside face of the panel door.
Where are tandem breakers allowed?
Sometimes the panel has clear labeling, but usually is doesn’t on these old panels. In these cases, it’s possible that tandem circuit breakers are allowed in every space in the panel. These breakers will be labeled “For replacement use only.
When can you use a tandem breaker?
A special kind of circuit breaker is the tandem breaker, which is designed to allow two 120-volt circuits to be fit into a single slot in the circuit breaker box. They are normally installed in situations where the breaker box is already full with no available slots for additional circuit breakers.
What are piggyback breakers?
A double circuit breaker takes the space of a single circuit breaker on a panelboard. Depending on local customs, they are called duplex, slimline, twin, half-height, half-inch, double and waferbreakers.
Can 2 circuits share a breaker?
The short answer is yes, if you have breakers that accept two wires, or if you pigtail them in the panel and connect a jumper to the breaker.
Can you put two wires one breaker?
When it’s NOT a defect: Double tapped wiring is ok if the circuit breaker is designed for two conductors. If a circuit breaker is designed for two conductors, it will say so right on the circuit breaker, and the terminal of the circuit breaker will be designed to hold two conductors in place.
Can I use a tandem breaker for 220v?
Tandem Circuit Breaker
Each slot on a breaker panel can hold one, single-pole 120 volt circuit. A 220 volt circuit will be double-pole and take up two slots. Tandem circuit breakers are a workaround to this normalcy, and it will put two 120-volt circuits in one slot.
How does a twin breaker work?
Double-pole breakers have two hot wires that are connected by a single neutral wire. That means if there’s a short circuit on either of the poles’ hot wires, both trip. These breakers can be used to serve two separate 120-volt circuits or they can serve a single 240-volt circuit, such as your central AC’s circuit.
Can you replace a double pole breaker with two single pole breakers?
Can I replace a double pole breaker with two single pole breakers? Two pole breakers to one pole breaker. You’ll have to return to the double-pole breaker if you decide to use the red wire again. Two single-pole breakers can’t be used for a multiwire circuit.
