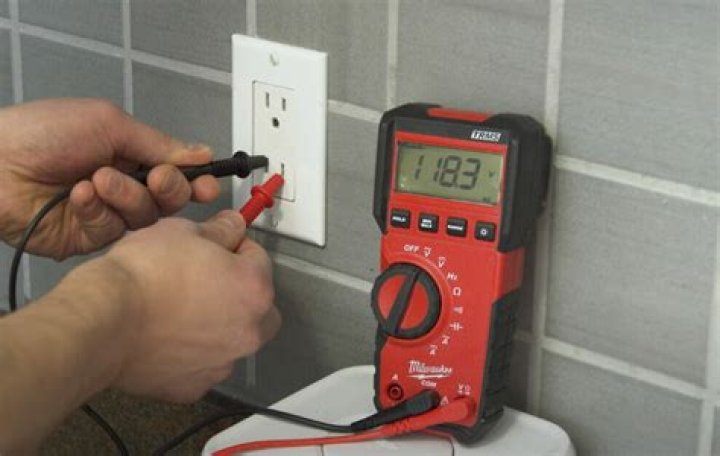

test outlet with multimeter
Set your meter to measure voltage. Select the alternating current (AC) function on the multimeter, which is often depicted with a wavy line. The DC function will have a solid and a dashed line.
How do I test a 220v outlet with a multimeter?
Insert the two test leads (one each) into the two “hot” slots of the outlet. For a three-prong outlet, the two “hot” slots will be slanted; for a four-prong outlet the two “hot” slots will be the two outside vertical slots. Once inserted, the voltage should read between 220 to 240 volts.
How do you test if a wire is live?
To test for a live electrical wire either a non-contact voltage tester or a digital multimeter is used. A non-contact voltage tester is the safest way for testing live wires, performed by placing the machine near the wire.
How do you determine if an outlet is bad?
Watch out for these signs that your outlet is due for a replacement.
Outlet Replacement Sign 1: The Outlet Is Not Working. Outlet Replacement Sign 2: Burn Marks or Melting. Outlet Replacement Sign 3: Cracks and Chips. Outlet Replacement Sign 4: Plugs Fall Out Easily. Outlet Replacement Sign 5: Outlet Feels Hot to the Touch.
How do you know if you have a bad outlet?
First, check the circuit breakers and GFCI receptacles to see if any of them are tripped (see GFCI Wiring Configurations). The best way to test a receptacle, including a GFCI, is with a receptacle tester. A test may be done to determine if power is present at the receptacle or if it is wired properly.
How do you troubleshoot an electrical outlet?
Step 1: Make sure the problem isn’t with the appliance. Step 2: Check for a switch to the outlet. Step 3: Look for a tripped GFCI breaker. Step 4: Check the breaker panel. Step 5: Tighten the outlet electrical connections. Step 7: Call an electrician.
How do you check if a wire has power?
To test for power with a non-contact voltage tester, touch the sensor tip of the tester to each of the circuit wires. If the tester lights up when touching any of the wires, the circuit still has power.
How do you check if current is flowing?
The most common way to measure current in a circuit is to break the circuit open and insert an “ammeter” in series (in-line) with the circuit so that all electrons flowing through the circuit also have to go through the meter.
Can you get electrocuted using a multimeter?
Many electrical incidents have occurred while qualified electrical workers were using a digital multimeter or test instrument. Shock hazards can occur if the meter and test leads are not properly maintained.
Is 220V the same as 240V?
Answer. In North America, the terms 220V, 230V, and 240V all refer to the same system voltage level.
