tubing swage

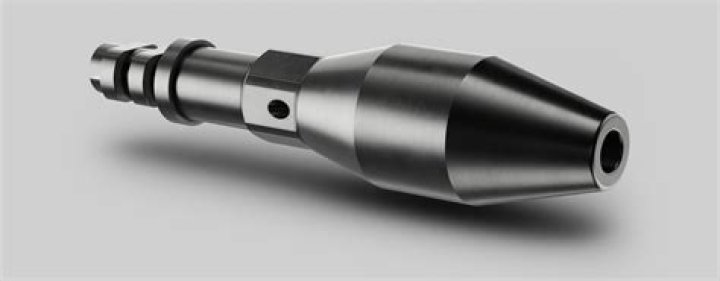

A tubing swage consists of a solid bar with an up-set in the middle and tapered at both ends. A center bore with lateral ports provides fluid by-pass. Swages are available in a range of sizes to fit the need and have a customer specified top connection with fishing neck.

What is a swage used for?

swage, Perforated cast-iron or steel block with grooved sides, used by metalworkers for shaping their work by holding it on the work (or the work on it) and striking with a hammer or sledge. Swage blocks are used in heading bolts and swaging bars by hand.

Why is it imperative to swage tubing?

Tube swaging seeks to increase the inside diameter of the tubing, eliminate the requirement of the additional fittings. In this way, it will save money and reduce any possibility of leaks. Swaged ends tend to have a cylindrical shape.

Why is swaging done?

Swaging is a forging process that’s used in the manufacturing industry to change the size and shape of a workpiece by exposing it to compressive forces. The compressive forces, such as that of a hammer, push the workpiece through one or more dies.

What’s the difference between flaring and swaging?

Tools for flaring apply pressure to expand the end of pipes or tubing to create a funnel or flared shape. Swaging tools allow you to create wider, deeper openings for pipes and tubing. The use of these tools varies depending on the application of the pipes and tubing.

How do you flare a small copper pipe?

To flare the pipe, put it into a hole that has a matching size as the copper on the flare form. Place the reamer on top of the flare form so the conical point is against the tubing. As you tighten the reamer, the conical point will flare the copper easily.

What is the difference between swaging and crimping?

The basic difference between the two is that the swaging process reduces the ferrule size as it moves towards the fittings, while crimping changes the shape of the entire circumference of the hose.

Which products are manufactured by swaging?

Uses
Blacksmithing. Swages are used for shaping the metal in various ways, to enhance its beauty or its fit for a desired purpose.Electronics. Plastics. Pipes and cables. Saw blade teeth. Manufacturing. Firearms. Medicine.

What is swage block made out of?

A swage block (or swager block) is a large, heavy block of cast iron or steel used in smithing, with variously-sized holes in its face and usually with forms on the sides. The through-holes are of various shapes and sizes and are used to hold, support or back up a hot bar of metal for further shaping.

Can you swage hard copper?

Swaging SPIN:

Forms hard copper. Using the Swaging SPIN you will have half the braze joints, decreasing drastically the probability of leaks. You save money by dispensing additional fittings.

What is rotary swaging?

Rotary swaging, also formerly known as swaging, is process for precision forming of tubes, bars and other cylindrical workpieces. Rotary swaging can be differentiated by two different processes: Infeed swaging.

How do you swage steel tube?

Swaging is accomplished by using a tube die to compress one tube in order to reduce its diameter, it is then connected to another pipe or fitting and compressive force is applied to form a join. The inner diameter of the tube can be a different shape as a result of the compression.

What is the process of swaging?

Swaging, also pronounced “swedge”, is a metal-forming technique in which the metal of one part is deformed to fit around another part by either pressing or hammering, or by forcing the material through a die.

What do you mean by swaging?

verb (used with object), swaged, swag·ing. to bend or shape by means of a swage. to reduce or taper (an object), as by forging or squeezing.

What kind of tubing is considered strong?

Steel is durable and strong metal with a high resistance to heat. Steel is an alloy of iron and carbon – it is commonly alloyed with other metals to improve its corrosion resistance and durability.
