what is a rafter

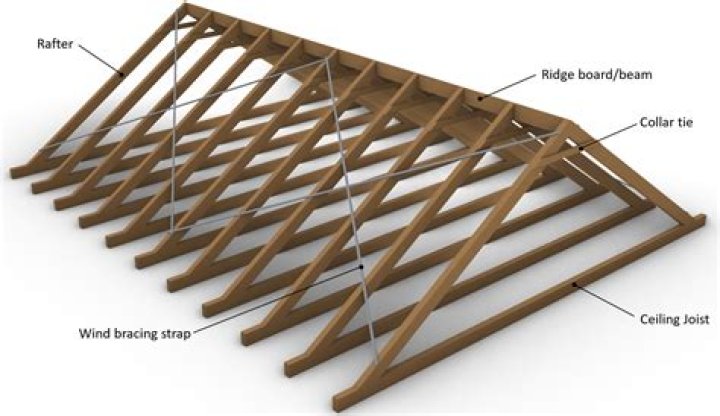

A rafter is one of a series of sloped structural members such as wooden beams that extend from the ridge or hip to the wall plate, downslope perimeter or eave, and that are designed to support the roof shingles, roof deck and its associated loads. A pair of rafters is called a couple.

Is a rafter the same as a truss?

Rafters and trusses are those that support the roof. Though both rafters and trusses are triangles in shape, the trusses have more triangle webs inside the principle frame. Rafters consist of sloping outer beams which provide support.

What are 3 types of rafters?

The most common types of rafter include:
Principal rafter: Usually the largest type of rafter located at the ends of a roof structure.Common rafter: Smaller rafters located in between the principals at both ends.Auxiliary rafter: Less common but can be used to support and reinforce a principal rafter.

What is a rafter in building?

A rafter is defined as one of a series of sloped structural pieces (typically wooden beams) that extend from the hip or ridge to eave, wall plate, or downslope perimeter. They’re designed to support the roof deck, shingles, and everything else that goes with the roof. Rafters are the traditional way to frame a roof.

What do roof rafters sit on?

Rafter tie

As the rafters sit on top of the wall plates at an angle, they exert horizontal forces on the exterior walls. Rafter ties, which often double as ceiling joists, prevent these horizontal forces from causing the walls to “pancake.”

Are rafter ties necessary?

Rafter ties are always required unless the roof has a structural (self-supporting) ridge, or is built using engineered trusses. A lack of rafter ties is a serious structural issue in a conventionally framed roof. In most homes, the ceiling joists also serve as the rafter ties.

What is the most common roof pitch?

Conventional slope roofs are most common with residential roofs. This means the slope has a pitch between 4/12 and 9/12 on most homes.

What is the difference between a trust and a rafter?

While rafters are constructed in a stick framing pattern, trusses feature chords on the top and bottom and an arrangement of webbing which allows it to distribute the load more broadly to the outside walls.

Which is better trusses or rafters?

Once in place, rafters use up more wood, so they weigh more, but trusses are stronger because they are more efficient and have the capacity to produce maximum strength using fewer materials in the end.

What is the difference between a rafter and a purlin?

The rafters are the beams of wood angled upward from the ground. They meet at the top of the gable at a ridge beam, which has extra bracing to attach it to the rafters. The purlins are the large beams perpendicular to the rafters; from this shot, it appears that there are three purlins on either side of the roof.

What are roof rafters called?

A roof truss is a pre-manufactured roofing component — what you’d typically consider to be the rafters of a roof. Trusses are manufactured offsite, and then shipped already assembled to a construction site to reduce on-site labor and speed the building process along.

What are roof beams called?

Roof beam: a typically squared length of timber that spans an area of building usually intended to be a primary load-bearing part of the roof framing. Roof beam is often used colloquially to refer to any beam associated with a roof: Joists or rafters.

Are rafters structural?

A rafter is a structural component of a roof on a building. Traditional rafters frame out the roof and connect to the exterior walls. This system is also called stick framing.

Is it cheaper to build or buy trusses?

Lower cost – Building with roof trusses is 30% to 50% cheaper than building a stick roof.

Is it cheaper to build or buy roof trusses?

Roof trusses help builders save labor costs, but they are also simply quicker to install and cheaper in overall cost than stick-built rafters. Buying roof and floor trusses for San Diego building projects can get your buildings up faster and save you money in your overall construction costs.

How do rafters attached to walls?

In a sloped roof, common rafters run from the peak of the roof down to the top of the exterior walls of the building. At the peak, the rafters are nailed to a ridge board, and at the top of the wall, rafters are attached to the horizontal top plate of the wall framing.

How do you lay out a rafter?

To lay out a common rafter, you need the pitch of the roof, expressed in units of rise per foot of run. Step 1: Start at the ridge. Step 2: Plumb and seat cuts complete the bird’s mouth. Step 3: Flip the square to mark the overhang. Step 4: Trim the plumb cut to account for the ridge board.

How thick is a rafter?

In general, a 2-by-4 roof truss will support as much roof load as a 2-by-6 or 2-by-8 rafter. Standard roof sheathing consists of 4-by-8 plywood or oriented strand board, or OSB. It is 1/2-inch thick and attaches to the roof rafters or trusses.
